Espey WKA1100HP

Request product

Espey WKA1100HP

Espey WKA1100HP
Request product

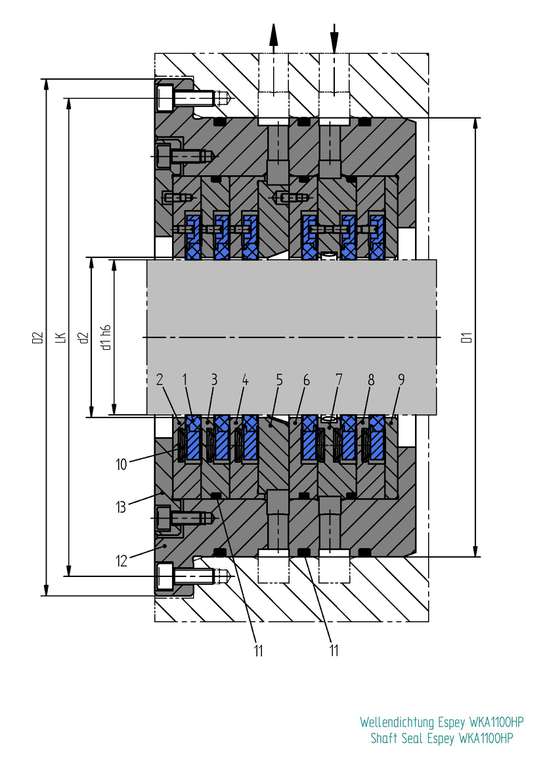

Item Description
1 Seal ring
2 Chamber
3 Chamber
4 Chamber
5 Lantern
6 Chamber
7 Barrier gas chamber
8 Chamber
9 End ring
10 Pressure spring
11 O-Ring
12 Housing
13 Lid


Espey WKA1100HP

Features

  • Chamber seal (modular design - can be combined in any order), optional with housing and lid
  • Very small operation gap - low leakage
  • Dry running
  • Seal rings bear radial shaft movements
  • Compensates axial shaft movements
  • No sealing components mounted on the shaft and hence no additional shaft vibrations
  • Seal rings running contact-free - sliding faces and machine consume no additional power
  • One-piece seal ring with titanium bandage
  • Both side balanced seal ring inside chamber for short-term backpressure operation
  • Seal ring axially spring-loaded – no swinging up at pressure-less machine operation

Advantages

  • High reliability
  • Long-term operation time
  • Maintainability

Operating range

Shaft diameter:
d = 20 ... 200 mm (0.79" … 7.87")
Operating pressure:
p = vacuum ... 250 bar (3,626 PSI) abs.
Operating temperature:
t = -120 °C ... +225 °C (-184 °F … +437 °F)
Sliding velocity:
vg = max. 240 m/s (787 ft/s)
Radial play: ±1.0 mm (±0.04")
Axial movement: theoretically unlimited
Recommended wear guard: >58 HRC

Materials

Seal ring: Carbon with titanium bandage
Chamber and housing parts: 1.4021, 1.4571, Hastelloy®, Titan, Inconel®, others
Secondardy seal (elastomer): Fluorocarbon rubber (Viton®), Nitrile-butadiene-rubber (Perbunan®), Perfluorocarbon rubber (Kalrez®)
Secondary seal (flat gasket): Statotherm®-HT/HD, KSiL C 4400

Standards and approvals

  • FDA
