KE-Flex
expansion joints

Request product

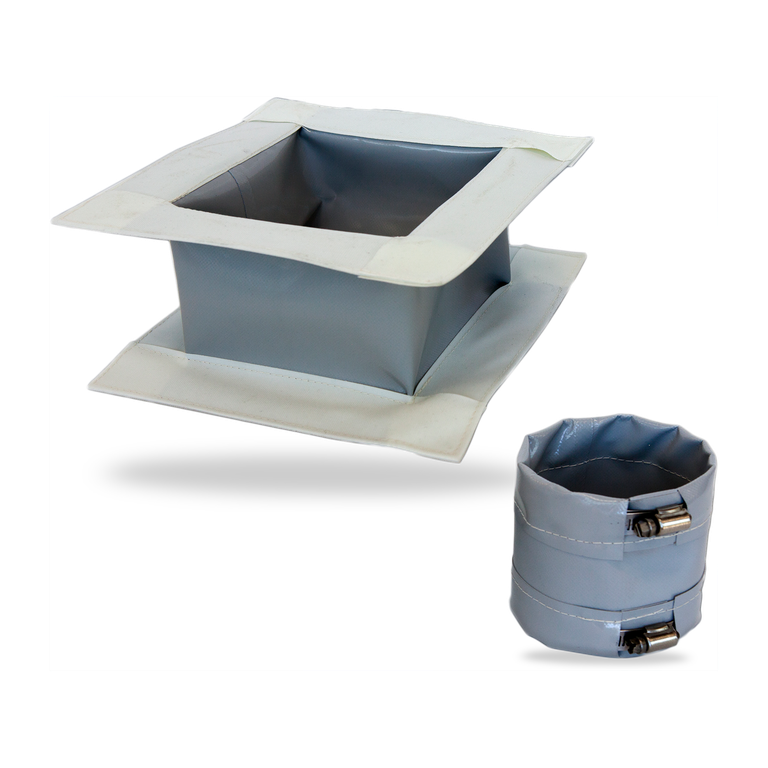

KE-Flex
expansion joints

KE-Flex <br/> expansion joints
Request product

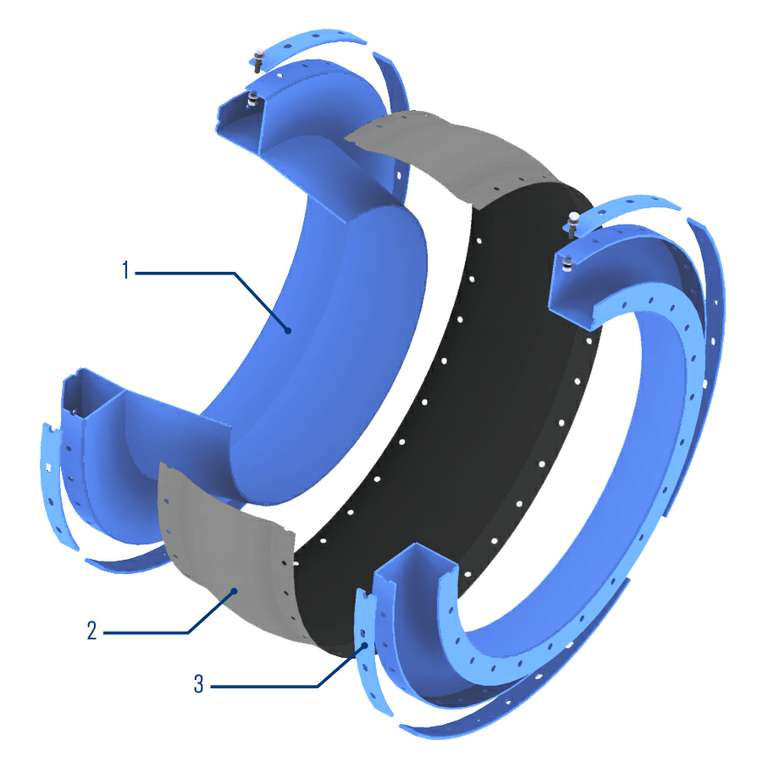

Item Description
1 Frames
2 Expansion joint
3 Clamp bar

KE-Flex
expansion joints

Features

  • Single layer design
  • Compensates for movements in several directions simultaneously
  • Can be delivered as fabric only or as preassembled drop in unit
  • For dry and wet condition*
  • Custom made to fit actual working conditions

* Depending on material selection

Advantages

  • Highly flexible
  • Minimal reaction forces
  • Suitable for food processing*
  • 100 % gas tightness*

* Depending on material selection

Operating range

Temperature:
-35 °C ... +300 °C (-30 °F ... +572 °F)
Pressure:
-0.25 bar ... 0.25 bar (-3.63 PSI ... 3.63 PSI)
Maximal axial movements: … 200 mm (8”)
Maximal lateral movements: … 80 mm (3”)

Standards and approvals

Documentation:
- EN 10204-2.2 certificate
- Safety Data Sheets (SDS) for individual materials

Functional description

KE-Flex expansion joints safely absorb thermal expansion, vibrations and misalignments in pipe and duct systems in low temperature areas. KE-Flex products compensate for movements in multiple directions simultaneously.


Product variants

Pre-assembled units

Pre-assembled units

Pre-assembled expansion joint units consist of:

- Fabric expansion joint
- Metal frames / inner sleeves
- Bolster (internal insulation)
- Gaskets (optional)
- Fasteners

Frame material:

- Carbon steel
- Stainless steel
- Heat resistant steel

Pre-assembled expansion joint units can be supplied with surface treatment that is corrosion resistant (standard) and resistant to high temperatures. EagleBurgmann offers any RAL color code for the units. Units can be delivered with seaworthy packing or standard packing for road transportation.

Similar products

Acouseal expansion joint

Acouseal expansion joint

  • Single layer design
  • Designed for acoustic demanding environment in GT inlets
  • Absorbs movements and vibrations in multiple directions
  • 100 % gas tight connection
  • Excellent and proven sound reducing properties

Read more

Combine-X expansion joints

Combine-X expansion joints

  • Multi layer design
  • Compensates for movements in several directions simultaneously
  • Excellent form stability
  • Can be delivered as fabric only or as preassembled unit
  • Custom made to fit actual working conditions
  • Specifically designed for gas turbine systems

Read more

Flexgen expansion joints

Flexgen expansion joints

  • Multi layer design (Flexgen 2002: single layer construction)
  • Compensates for movements in several directions simultaneously
  • Can be delivered as fabric only or as preassembled unit
  • For dry condition
  • Custom made to fit actual working conditions

Read more
