MAK685

Request product

MAK685

MAK685
Request product

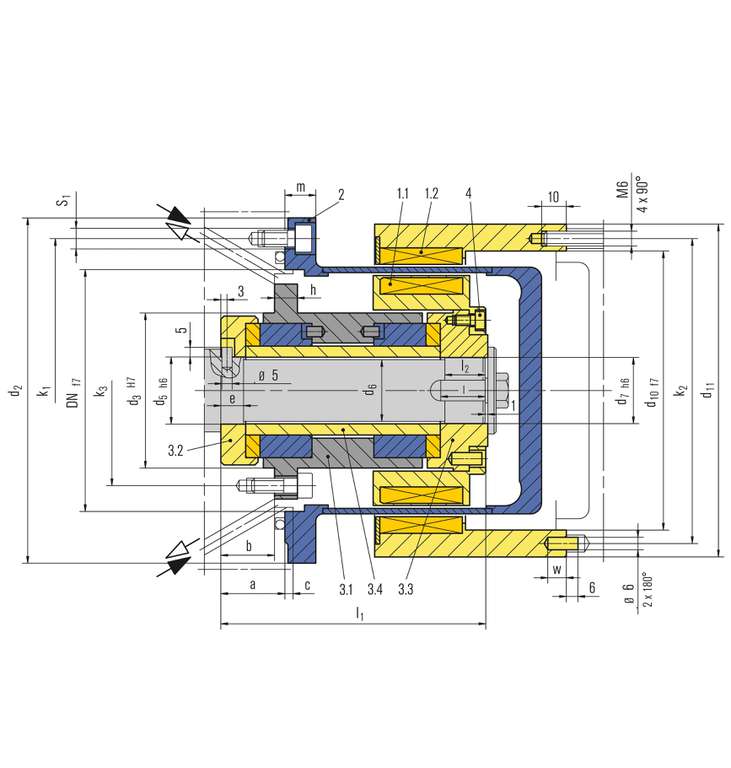

Item Description
1 Coupling
1.1 Inner rotor
1.2 Outer rotor
2 Can
3 Bearing assembly
3.1 Radial journal bearing
3.2 Axial journal bearing
3.3 Axial journal bearing
3.4 Shaft sleeve
4 HSH cap screw

MAK685

Features

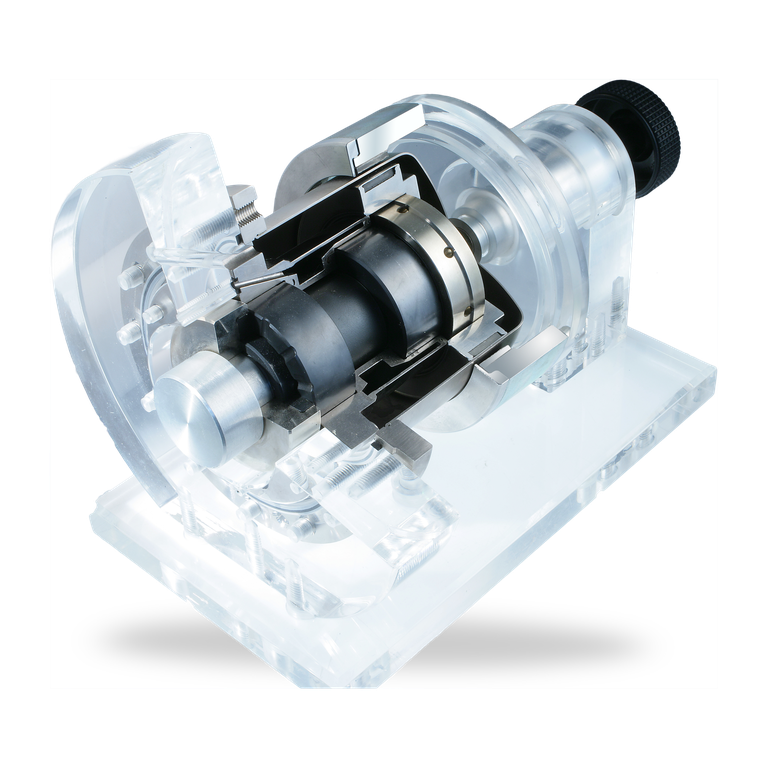

Magnetic couplings (MAK) are a hermetic sealing solution for pumps and agitators. Dangerous or precious media remain isolated in the closed system circuit.

Advantages

  • Magnetic coupling for applications acc. to API 685 (similar to API610)
  • Hermetically sealed
  • No contact of torque transmitting elements
  • No maintenance necessary
  • Hastelloy® can available
  • High efficiency can optional
  • Product-lubricated sliding bearings included

Operating range

Shaft diameter: d = ... 40 mm (1,57")
Pressure: p = 40 bar (580 PSI)
Temperature: t = -40 °C ... +250 °C (-40 °F ... +482 °F) (SmCo),
+120 °C (+248 °F) (NdFeB)
Speed: n = 3,600 min-1
Chemical resistance: pH 0 … 14
Viscosity: 0.3 … 5,000 mPas (SiC)
Torque: 434 Nm
Solids: max. 0.1 mm; max. 5 % by weight; grain hardness max. 700 HV

Materials

Sliding faces: Silicon carbide SiC (Q1),
Carbon silicon impregnated SiC-C-Si (Q3),
Carbon graphite resin impregnated (B)
Magnets: Samarium Cobalt (MA3),
Neodymium-Iron-Boron (MA8)
Metal parts: CrNiMo steel 1.4571 (G), CrNiMo steel 1.4462 (G1), Hastelloy® C-4 2.4610 (M)

Standards and approvals

  • API 685
  • Compliant to TA Luft (German Clean Air Act)

Functional description

The power transmission occurs contact-free through magnets from the drive shaft to the product wetted output shaft. Between the two rotating parts is the can wich is bolted to the container.

Notes

Different variants are available to meet specific requirements:

  • High temperature variant
  • High pressure can

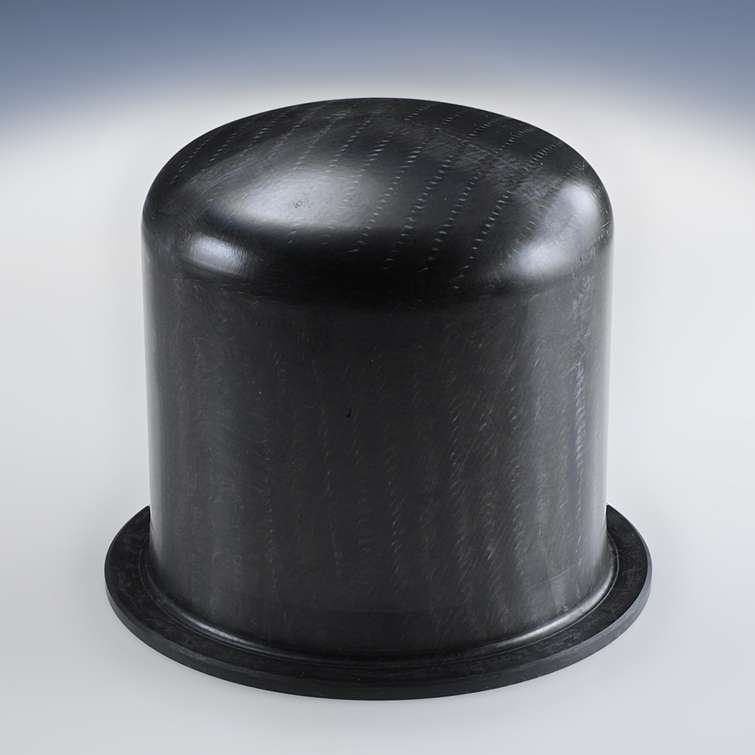

  • PEEK carbon fiber can


Product variants

PEEK carbon fiber can variant

Similar products

eMAK

eMAK

Magnetic couplings (MAK) are a hermetic, low-maintenance sealing solution for pumps, agitators, and aerators. Dangerous or precious media remains isolated in the closed system circuit. In turn, nothing penetrates to contaminate the medium.

  • For standard applications up to 25 bar
  • Available from stock
  • Single-walled can
  • Product-lubricated sliding bearing included (optional)
  • High performing
  • Energy efficient
  • Highly reliable and maintenance-free

    • Read more

MAK66

MAK66

Magnetic couplings (MAK) are a hermetic sealing solution for pumps and agitators. Dangerous or precious media remains isolated in the closed system circuit.

Read more

NMB High Efficiency

NMB High Efficiency

The NMB series is used successful in many applications worldwide. The can is made from PTFE-seal insulated rings and a slotted outer can, what reduces EC-losses to a minimum. They are designed for increased safety and energy savings. Thus they can handle large motor torques, high speed and high pressure.

Read more

Contact

Inquire about individual solutions

We develop and produce customer-specific special and individual solutions for every application.

Inquire now Discover reference projects
Back to the overview
